screen
zippers
Technical Data
Area of applications
Retractable interior screens, Exterior sun screens and blinds, Insect protection screens, Dust and light protection screens

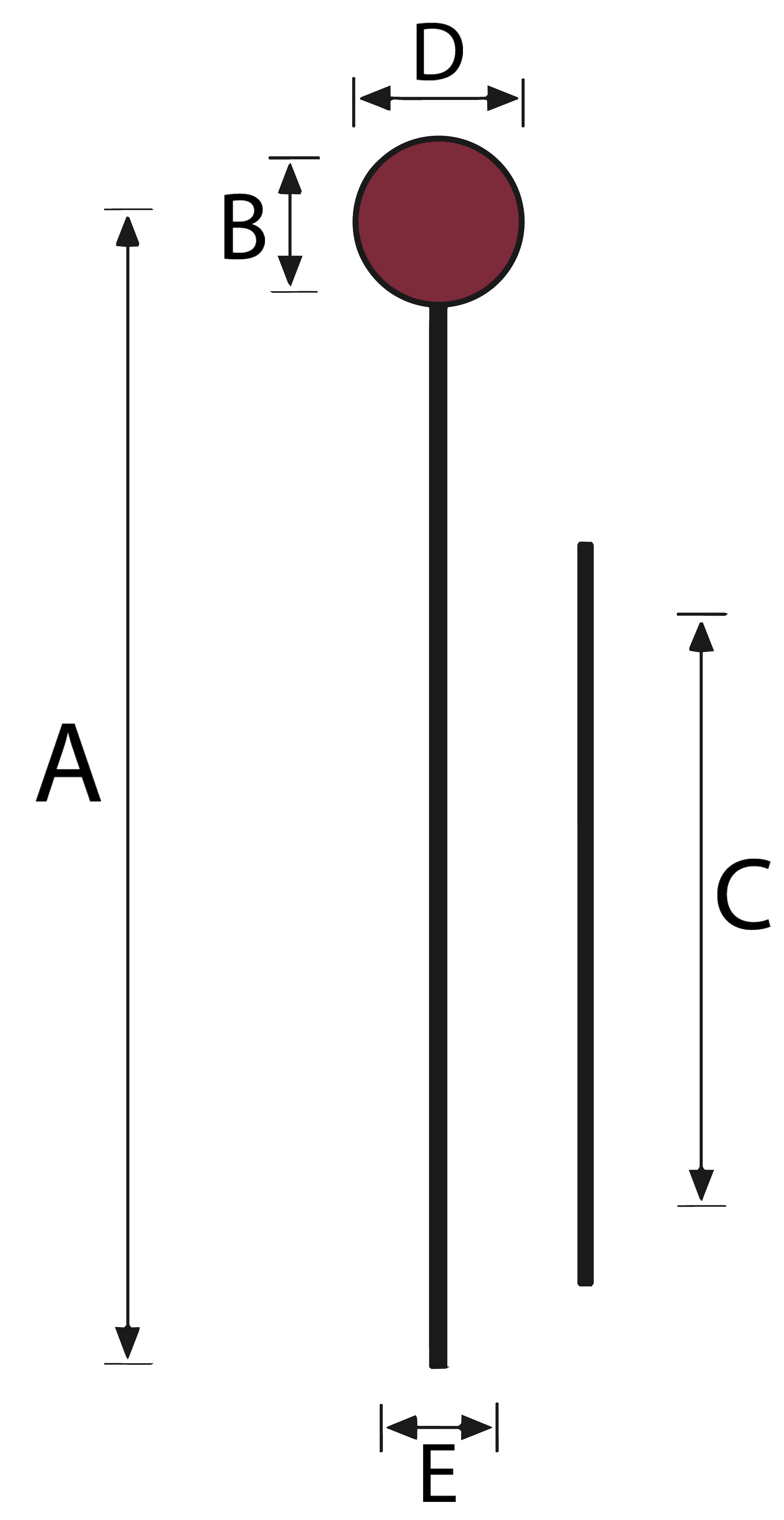

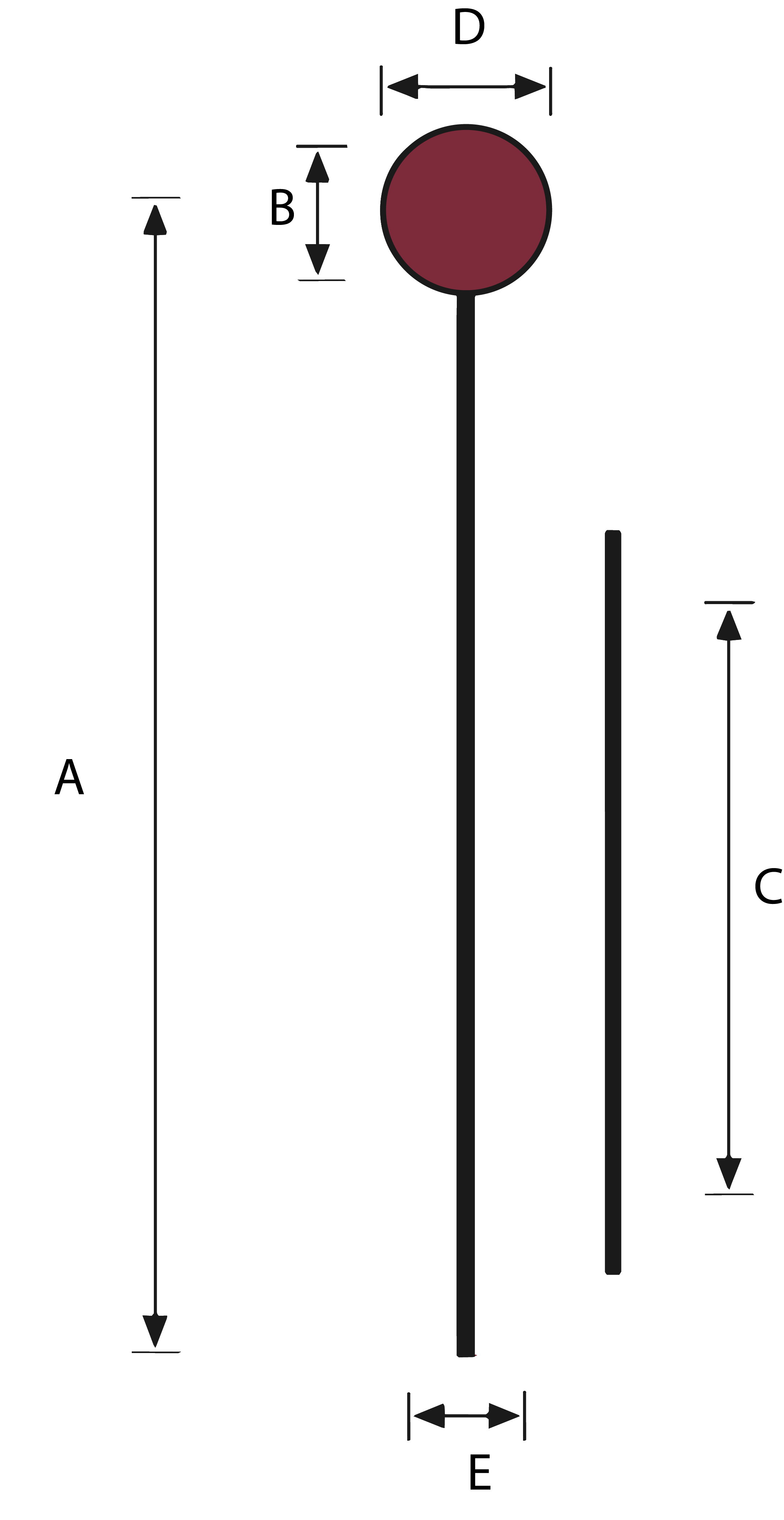

| Size | Total width (A) | Element width (B) | Element thickness (D) | Tape thickness (E) | Lateral strength (Min.) |
|---|---|---|---|---|---|
| #3 | 16mm/20mm | 2.55mm | 1.55mm | 0.45mm | 550 N |
| #3I | 17mm | 2.75mm | 1.95mm | 0.55mm | 550 N |
| #4 | 17mm | 3.20mm | 2.50mm | 0.50mm | 650 N |
| #5 | 21mm | 3.75mm | 2.70mm | 0.50mm | 650 N |
| #6 | 21mm | 4.45mm | 2.90mm | 0.50mm | 750 N |
| #8 | 24mm | 5.40mm | 3.75mm | 0.50mm | 950 N |
All Welding films - 11mm wide, 0.06mm thick
All Measurements are + 10%
Delivered rolled on a core, 200meters - 300meters long chain
Colors are available upon request and based on MOQ
Tape - 100% Polyester
Monofilament/element - 100% Polyester
