MOLDED ZIPPERS

ALL MOLDED ZIPPERS ARE available FOR SEWING OR WELDING

Technical Data

SIZES	#5/6	#8	#10	#15	#20
SEGMENTS
Area of applications
	Marine, Wet suits, Outdoor wear, Upholstery	Marine, Wet suits, Tents, Heavy garment and outdoor wear	Marine, Wet suits, Tents, Heavy garment and outdoor wear, Industry	Marine, Marquee Tents, Modular structures and shelters, Inflatable structures, Heavy industry, Agriculture	Marquee Tents, Modular structures and shelters, Inflatable structures, Fish farms, Heavy industry
Raw Materials
Teeth	Poly acetal	Poly acetal	Poly acetal	Poly acetal	Poly acetal
Tape	100% Polyester	100% Polyester	100% Polyester	100% Polyester	100% Polyester
Dimensions
Plastic teeth width	6mm	7.9mm	8.6mm	14.23 +/- 0.05mm	18 +/- 0.05mm
Plastic teeth thickness	2.9mm	3.8mm	3.95mm	5.90 +/- 0.03mm	7.70 +/- 0.02mm
Zipper tape thickness	0.46mm	0.50mm	0.50mm	0.58 +/- 0.02mm	0.60 +/- 0.02mm
Zipper tape width	14.9mm	17.5 -18mm	17.5 -18mm	37 +/- 0.20mm	35 +/- 0.20mm
Total width of zipper	31mm	38.40mm	38.40mm	72 +/- 0.30mm	75 +/- 0.30mm
Length of tape ends	25mm	25mm	25mm	2.45mm	2.45mm
Length tolerance	1% or 1cm (the smallest)	1% or 1cm (the smallest)	1% or 1cm (the smallest)	2% or 2cm (the smallest)	2% or 3cm (the smallest)
Weight per meter of zipper chain	25.4gr.	37.9gr	42.9gr	103gr	140gr
Zipper Strength Data
Lateral strength of zipper chain	38 - 42Kg	53 -60kg	70 - 75kg	102kg
Operating force	0.2Kg	0.3kg	0.5 - 0.75kg	0.4 – 0.7kg	0.7 - 1kg
Durability	500 cycles	500 cycles	500 cycles	500 cycles	500 cycles
Lateral strength after durability	37 – 41Kg	52 – 59kg	70kg	100kg	133kg
Holding strength of separable unit	15 - 19Kg	26 - 32kg	26 - 32kg	62kg	133kg
Holding strength of bottom stops	25Kg	28kg	45kg	46kg	63kg
Slider over the top stop	12Kg	14kg	16kg	40kg	49kg

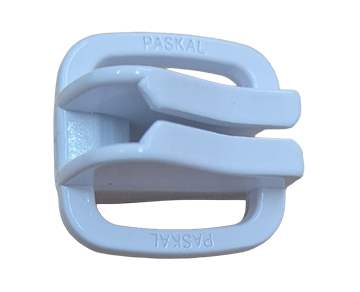

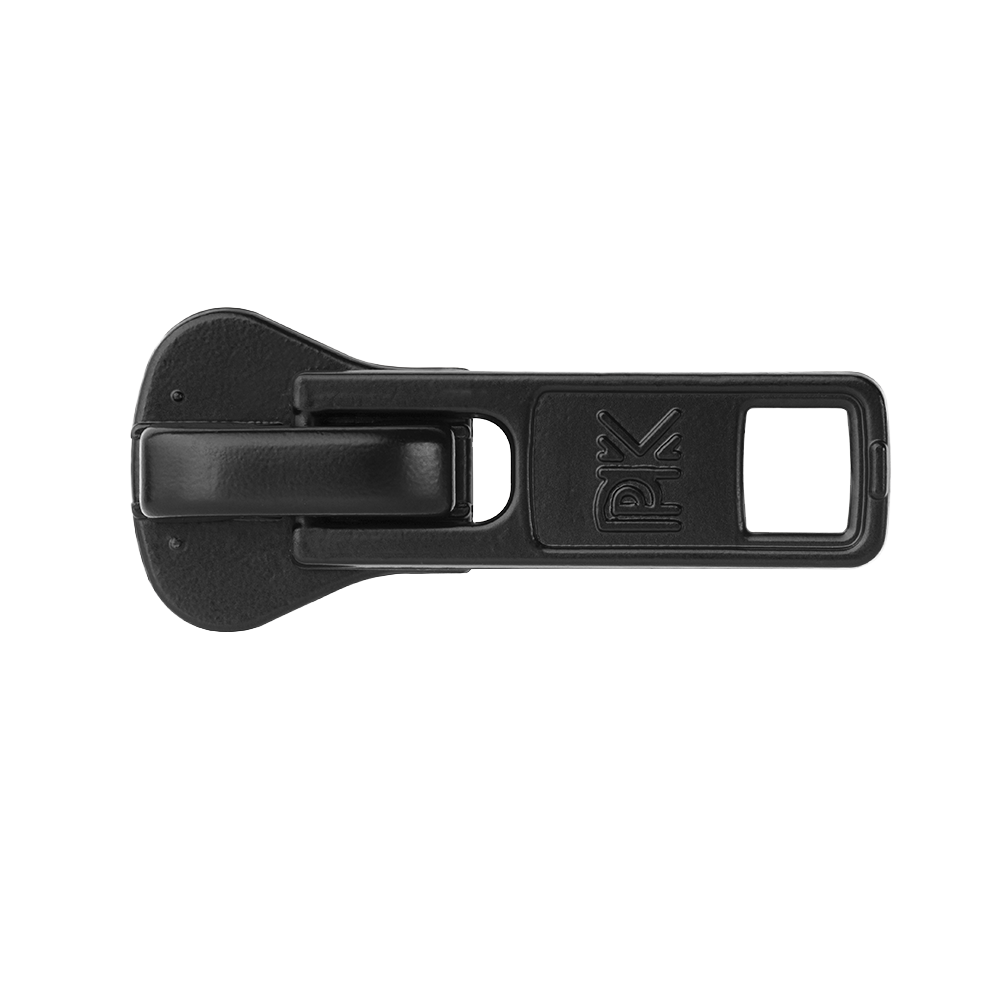

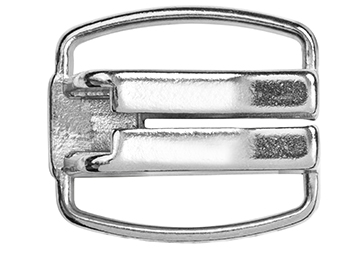

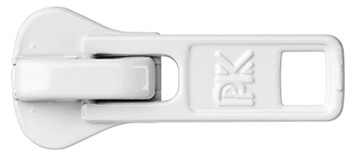

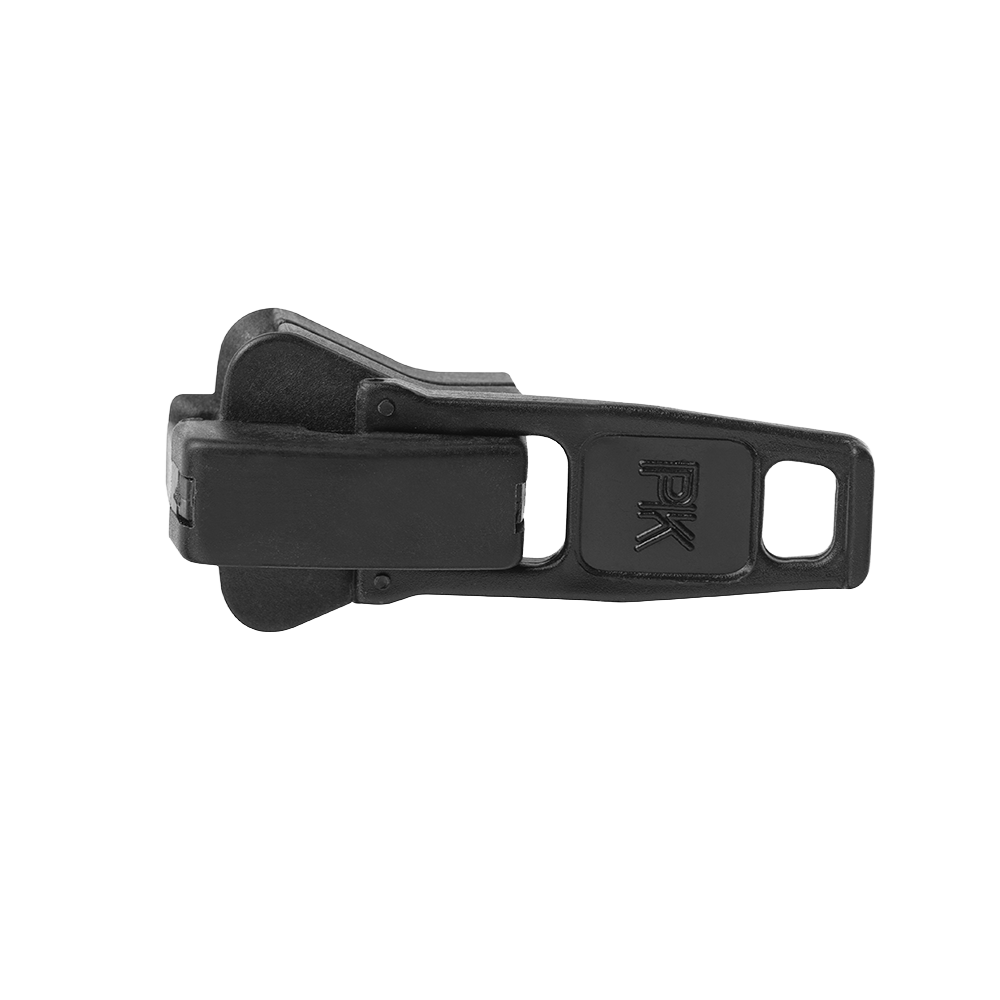

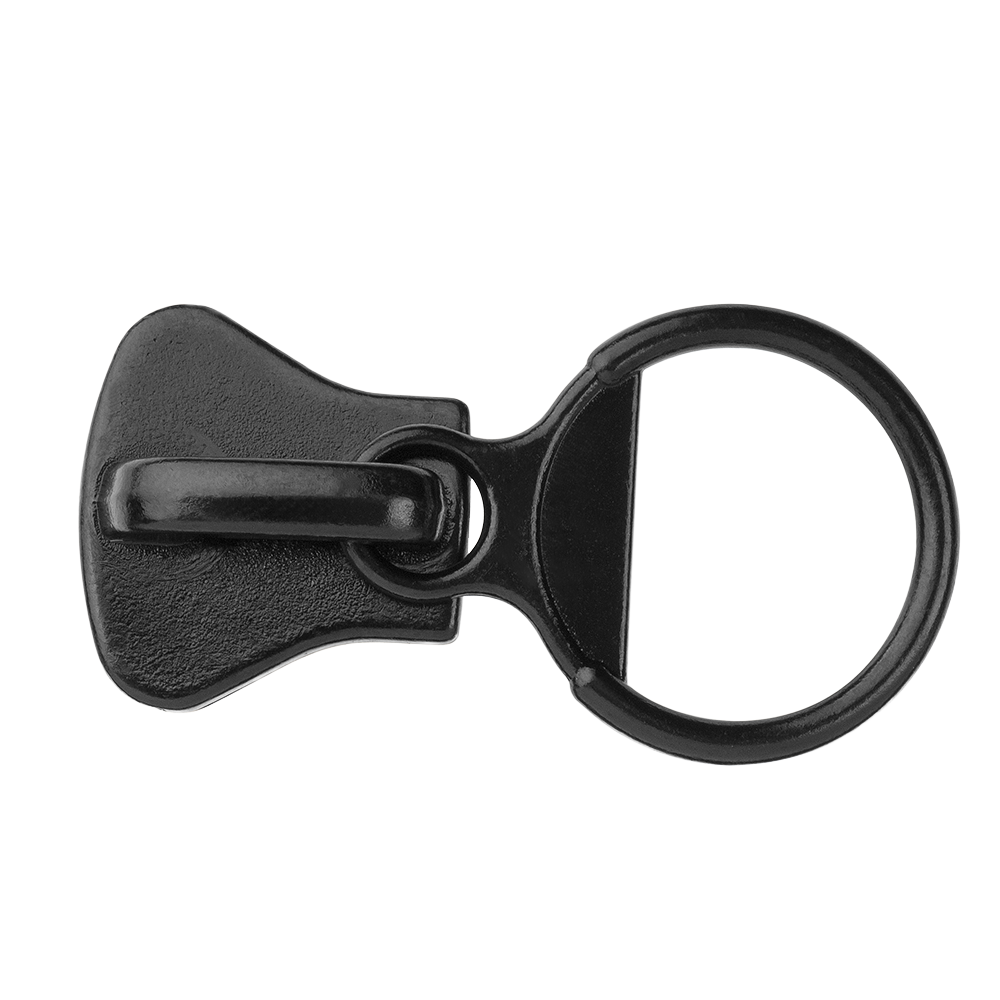

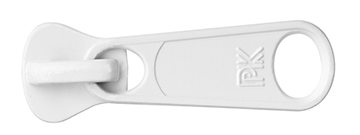

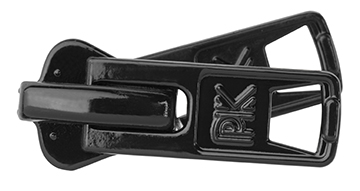

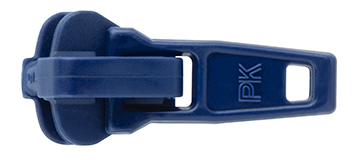

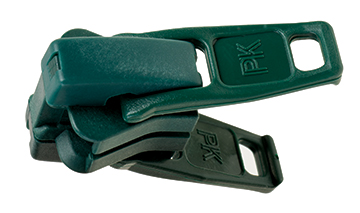

Available Sliders

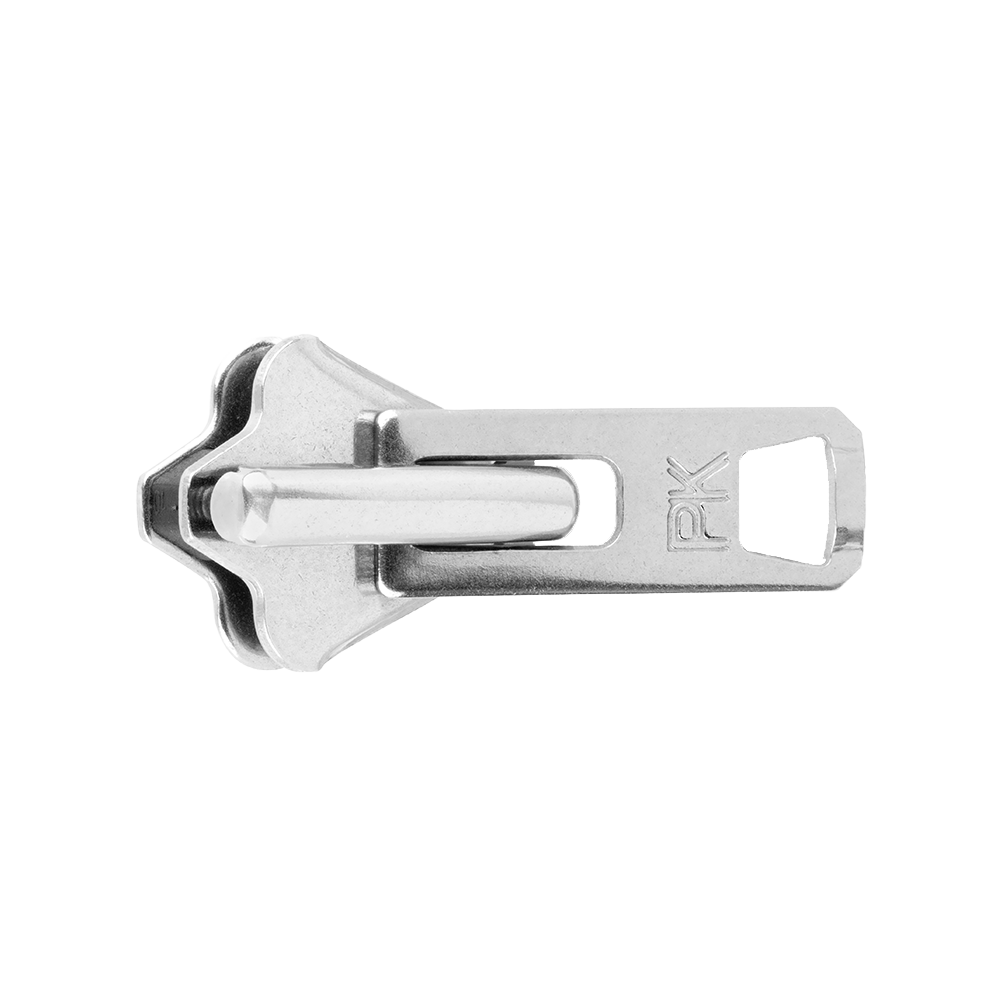

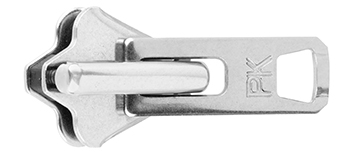

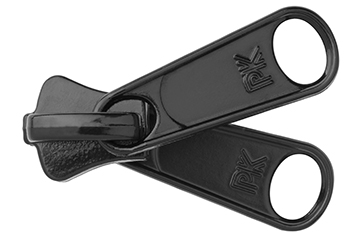

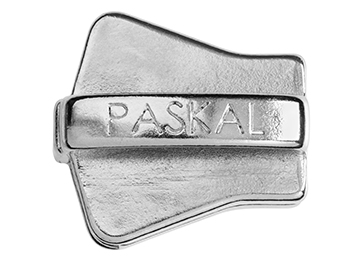

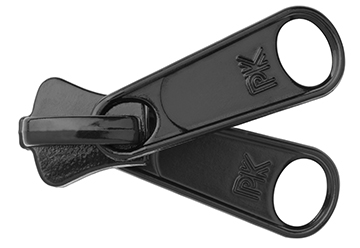

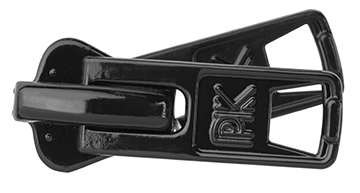

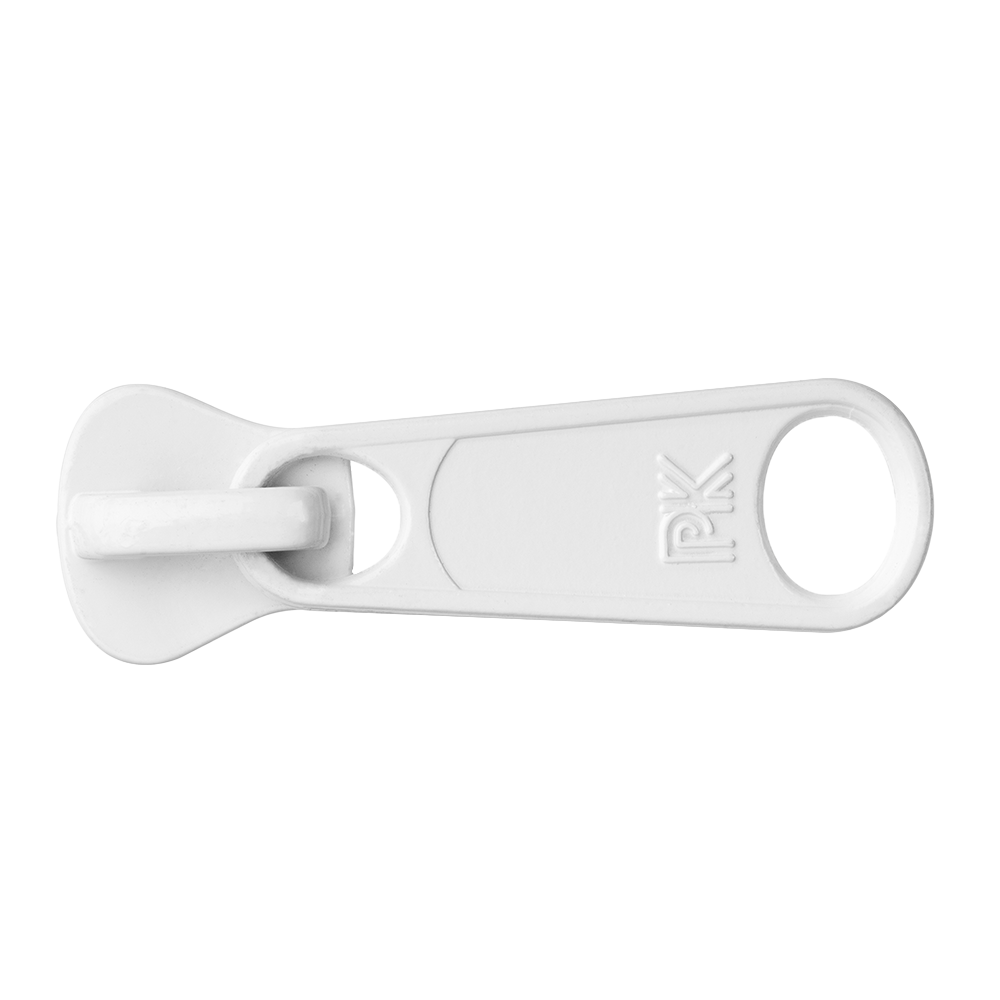

Metal	No lock double pull, No lock single pull, Auto lock single pull, Auto lock double pull	No lock single pull, Auto lock single pull, Auto lock double pull.	No lock double pull, No lock single pull, Auto lock single pull, Auto lock double pull	No lock double pull, No lock single pull, Auto lock single pull, Auto lock double pull

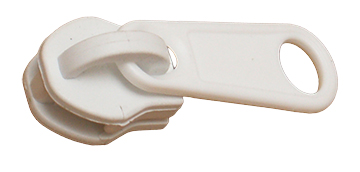

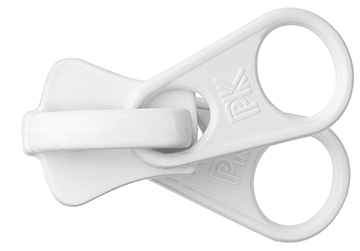

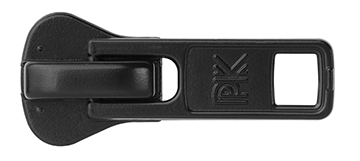

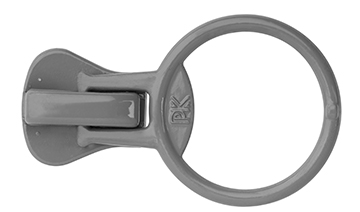

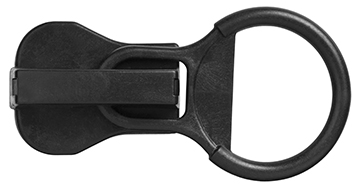

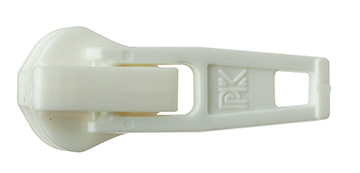

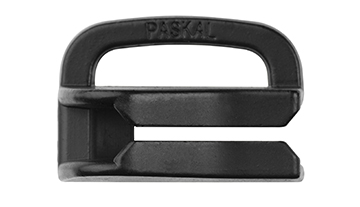

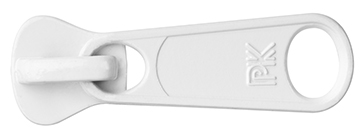

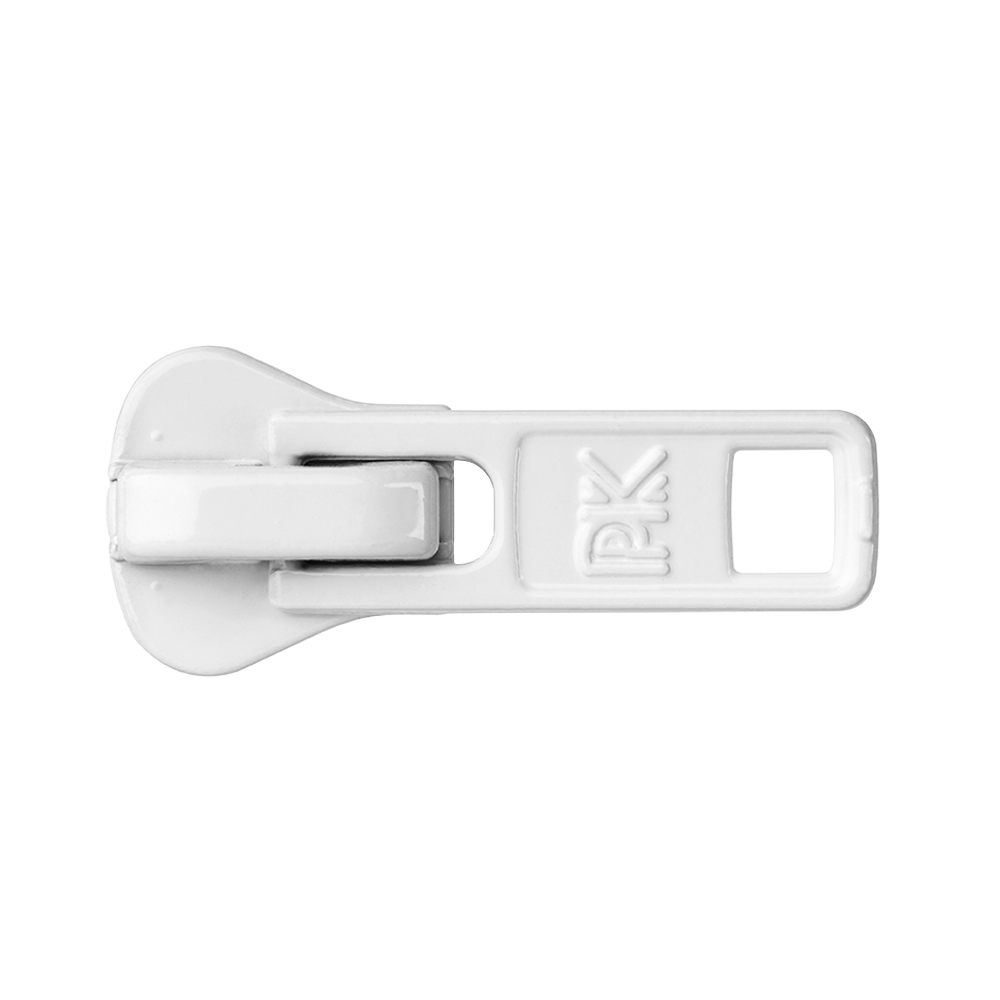

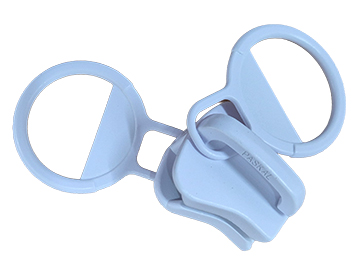

Plastic	No lock single pull, Auto lock single pull	Auto lock single pull	No lock single pull, Auto lock single pull		Auto lock single pull

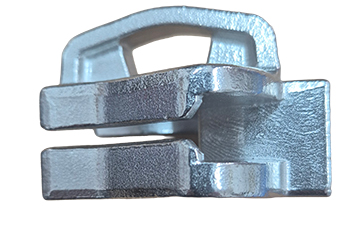

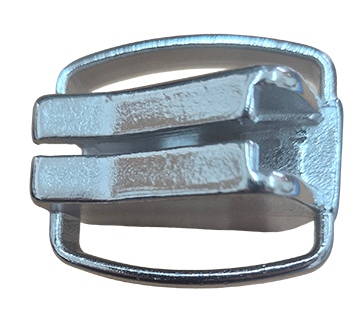

Stainless Steel			Auto lock single pull	No lock double bridge, No lock single bridge	No lock double pull, No lock single pull
Colors
	Black, White, Navy, Grey, Beige. Other colors available subject to MOQ	Black, White, Navy, Grey, Beige. Other colors available subject to MOQ	Black, White, Navy, Grey, Beige. Other colors available subject to MOQ	Black, White, Grey. Other colors available subject to MOQ.	Black, White. Other colors available subject to MOQ.
Standards
EN 16732
ASTM D2061
